您當前的位置:首頁> 產品中心 >IP67防水工控機

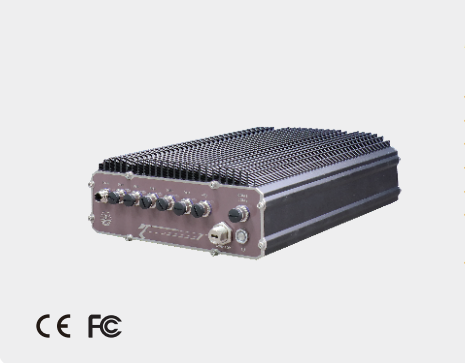

Nuvo-9650AWP Series

Affordable IP65 waterproof Intel? 13th/12th-Gen Core? computer with 4x M12 PoE+ and USB3.2 Type-C ports supporting DP display

  • Intel? 13th /12th-Gen Core? 24C/ 32T 35W/ 65W CPU
  • IP65-rated waterproof and dustproof
  • Up to 64GB DDR5 4800 SODIMM
  • -25°C to 70°C wide-temperature fanless operation
  • Up to 4x 802.3at GbE PoE+ ports via M12 X-coded connectors
  • 1x USB3.2 Type-C port supporting alternative mode for DisplayPort and USB3.2 via waterproof connectors
  • 8V to 48V DC input with built-in ignition power control

產品特性

Affordable IP65 waterproof Intel? 13th/12th-Gen Core? computer with 4x M12 PoE+ and USB3.2 Type-C ports supporting DP display


產品規格

System Core
Processor Supporting Intel?13th-Gen Core? CPU
(LGA1700 socket, 65W/ 35W TDP)
- Intel?Core? i9-13900E/ i9-13900TE
- Intel?Core? i7-13700E/ i7-13700TE
- Intel?Core? i5-13500E/ i5-13400E/i5-13500TE
- Intel?Core? i3-13100E/ i3-13100TE
Supporting Intel?12th-Gen Core? CPU
(LGA1700 socket, 65W/ 35W TDP)
- Intel?Core? i9-12900E/ i9-12900TE
- Intel?Core? i7-12700E/ i7-12700TE
- Intel?Core? i5-12500E/ i5-12500TE
- Intel?Core? i3-12100E/ i3-12100TE
- Intel?Pentium?G7400E/ G7400TE
- Intel?Celeron?G6900E/ G6900TE
Chipset Intel?H610E platform controller hub
Graphics Integrated Intel?UHD Graphics 770 (32EU) / 730 (24EU)
Memory Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
TPM Supports dTPM 2.0
I/O Interface
Ethernet 1x Gigabit Ethernet port by Intel?I219-LM (M12 X-coded)
3x 2.5G Ethernet ports by Intel? I226-IT (M12 X-coded)
1?個采用英特爾?? I210-IT?芯片的千兆以太網口
PoE+ Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE/GbE ports
100 W total power budget
USB 3.2 1x USB 3.2 Gen1 (5 Gbps) port in type-C waterproof connector
1x USB 3.2 Gen1 (rear side
USB 2.0 2x USB 2.0 (M12 A-coded)
1x USB 2.0 (internal)
Video Port
(Integrated Graphics)
1x DisplayPort in type-C waterproof connector, supporting 4096 x 2304 resolution
1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution (rear side)
Serial Port 1x isolated RS-232 port (COM1) and
1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin connector


Storage Interface
SATA HDD 2x Internal SATA port for 2.5" HDD/ SSD installation
M.2 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD
Internal Expansion Bus
Mini PCI Express 2x full-size mini PCI Express socket (PCIe + USB2)
M.2 B key 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
Power Supply
DC Input 8V to 48V DC input with built-in ignition power control
Mechanical
Dimension 225mm (W) x 286mm (D) x 90mm (H)
Weight 5.25KG
Mounting Wall-mounting
Environmental
Operating Temperature Operating Temperature with 35W CPU
-25°C ~ 70°Cwith 65W CPU
-25°C ~ 70°C (configured as 35W TDP mode)
-25°C ~ 50°C (configured as 65W TDP mode)
Storage
Temperature
?-40°C to 85°C
Humidity 10% to 90% , non-condensing
Vibration MIL-STD-810H, Method 514.8, Category 4
Shock MIL-STD-810H, Method 516.8, Procedure I
EMC CE/FCC Class A, according to EN 55032 & EN 55035


訂購信息
