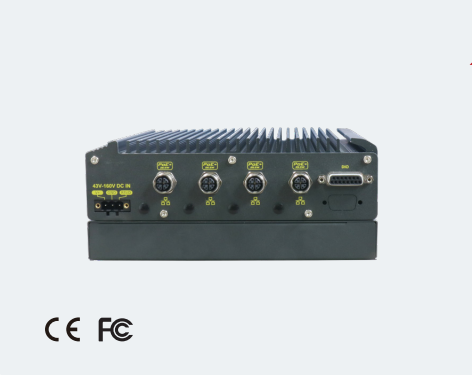

Nuvo-2615RL Series

EN50155 & EN45545 Intel?Elkhart Lake Atom?x6425E Railway Computer Supporting 110 VDC Input and 4x M12 PoE+

  • Compliant with EN 50155 mandatory tests and EN 45545-2
  • Rugged -40°C to 70°C fanless operations, compliant with EN 50155 Class OT4
  • 43V to 160V isolated wide-range DC input
  • Intel? Elkhart Lake Atom? x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
  • 4x PoE+ GbE ports via M12 x-coded connectors
  • Built-in SuperCAP UPS for power interruptions > 30 seconds
  • 1x front-accessible 2.5” 15mm HDD tray and 1x M.2 2280 SATA SSD
  • 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key

概述

The Nuvo-2615RL series is an EN50155 and EN45545-compliant, fanless Intel? Atom?-based railway computer for video-based rolling stock ?applications such as NVR (network video recorder) and video analytics.

產品特性

The Nuvo-2615RL series is an EN50155 and EN45545-compliant, fanless Intel? Atom?-based railway computer for video-based rolling stock ?applications such as NVR (network video recorder) and video analytics. Nuvo-2615RL has a dedicated thermal design to meet EN50155 OT4 class (-40°C to 70°C) fanless operation with max CPU performance and up to 50W ?PoE+ delivery. To overcome the challenging railway conditions, from voltage fluctuations to power outage interruptions, Nuvo-2615RL is equipped ?with an isolated wide 43V to 160V DC input design and a built-in SuperCAP UPS to sustain more than 30 seconds of operation time without power ?supply. If power outage time exceed the sustainable duration, the internal microcontroller (MCU) will trigger a software shutdown before running out ?of SuperCAP energy to protect the hardware, data, and minimize maintenance costs. Powered by Intel? Elkhart Lake Atom? x6425E quad-core CPU, the Nuvo-2615RL series delivers 1.8x the CPU performance compared with Intel's ?previous Atom generation, Apollo Lake. The Nuvo-2615RL series features 4x PoE+ GbE ports with up to 50W total power budget for IP camera ?connectivity. In addition to the internal M.2 2280 SATA SSD for system storage, Nuvo-2615RL has one front-accessible 2.5" HDD tray accommodating ?a 2.5" SATA HDD/SSD up to 15mm in height and 5TB in capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN ?modules. There is also an M.2 3042/3052 B Key socket for 4G/5G mobile broadband modules. Integrating an Intel Atom? quad-core x6425E, -40°C to 70°C fanless operations, M12 PoE+ connectivity, up to 5TB data storage capacity, 2500 wattsecond SuperCAP UPS, 43V to 160V wide-range DC input, and EN50155 and EN45545 compliance, the Nuvo-2615RL series is the ideal rugged ?transportation computer for vision-based rolling stock applications.

產品規格

System Core
Processor Intel?
?Elkhart Lake Atom?
?x6425E quad-core 2.0GHz/ 3.0GHz 12W
processor
Graphics Integrated Intel?UHD Graphics
Memory Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket

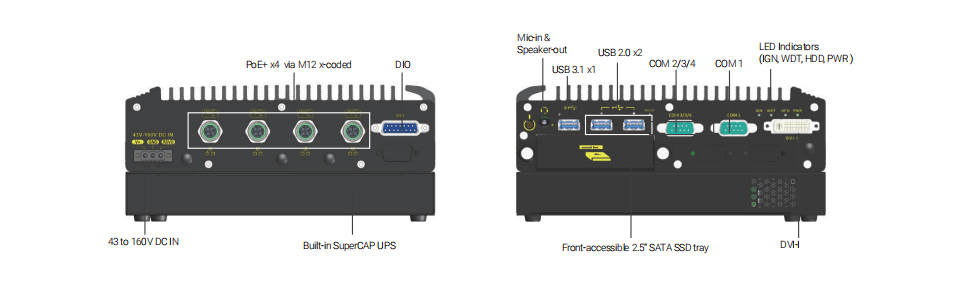

Panel I/O Interface
Power over Ethernet 4x IEEE 802.3at Gigabit PoE+ ports by Intel?
?I210 via M12 x-coded
connectors
Total PoE+ power budget: 50W (Nuvo-2615RL-H)
Video Port VGA and DVI dual display outputs via DVI-I connector
USB 3.1 1x USB 3.1 Gen1 ports with screw-lock
USB 2.0 2x USB 2.0 port with screw-lock
Serial Port 1x isolated RS-485 port with 15 kV ESD protection (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2)
Isolated DIO 4-CH isolated DI and 4-CH isolated DO
Audio 1x 3.5 mm jack for mic-in and speaker-out
Expansion Bus
Mini-PCIe Express 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal
1x full-size mini PCI Express socket with USB 2.0 signal
M.2 B key 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket
Storage Interface
M.2 SATA 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation
SATA HDD 1x front-accessible HDD tray for 2.5" HDD/ SSD installation (up to 15mm height)


Power Supply
DC Input 1x 3-pin pluggable terminal block for isolated 43V to 160V DC input
Power Backup
Capacity 2500 watt-second
Mechanical

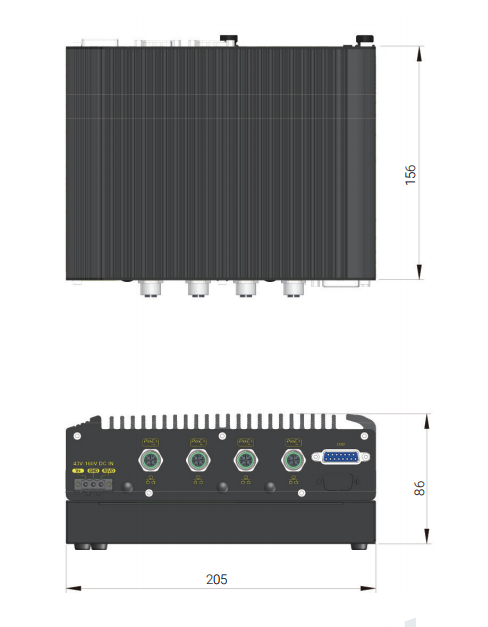

Dimension 205 mm (W) x 156 mm (D) x 86 mm (H)
Weight TBD
Mounting Damping Bracket (standard) Wall-mount (optional)
Environmental
Operating Temperature ?-40°C to 70°C*, compliant with EN50155 Class OT4
Storage Temperature ?-40°C ~85°C
Humidity 10%~90% , non-condensing
Vibration IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending)
Shock IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending)
EMC EN 50155:2017, Clause 13.4.8 (pending)
CE/FCC Class A, according to EN 55032 & EN 55035 (pending)
EN50155 All mandatory sections of EN 50155:2017 (pending)
Exceeds EN 50155 Class S3 (30 sec holdup time by internalSuperCAP UPS)
EN45545 EN 45545-2 (Fire protection on railway vehicles)


訂購信息

Model No. Product Description
Nuvo-2615RL-H EN50155 & EN45545 Intel? Elkhart Lake Atom?x6425E Railway Fanless Computer with 4x M12 PoE+ and 43V to 160V ultra-wide-range DC input
